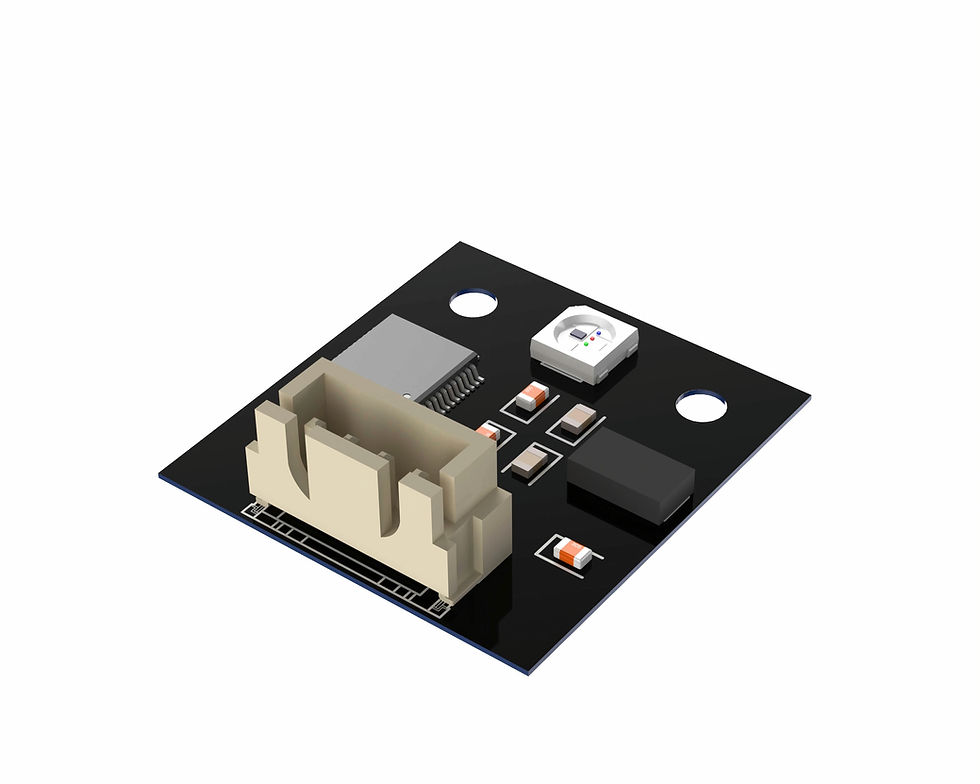

The Peanut KING V1TCS34725 RGB color sensor module is a complete color detector. It includes the TAOSTCS34725 sensor chip with an infrared blocking filter, RGBW LEDs, and a white LED. This color sensor module senses light reflected from objects and filters it into red, green, blue, and clear light, producing colors in RGB format.
Features :
Embedded with STM32L051 microcontroller
RGBW LEDs indicate detected colors
Supports LED illumination control
Full-size RGB and HSL color gamut
Specifications :
Power Supply Voltage: 4.5～5.5V DC
Operating Current: ~6.2μA
Operating Temperature: -40～85℃
Operating Humidity: <90%
Weight: 4.5g
Interface: I2C standard mode, 7-bit address 0x11
Dimensions: 30 x 28 x 16mm
Detection Distance: 1.5 – 7 cm (2 cm recommended)
Peanut KING Color Sensor V1
HK$150.00價格
